When it comes to electrical safety, there’s no room for shortcuts. Electricians, facility managers, and maintenance teams know that verifying the absence of voltage is a critical step before performing any work on electrical panels or equipment. But traditional voltage testing can be time-consuming, complex, and—most importantly—dangerous.

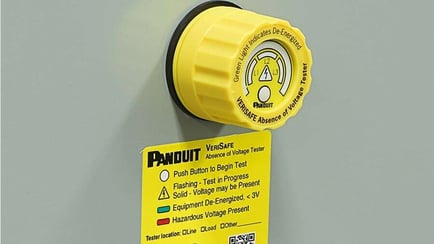

What Is the VeriSafe® 2.0 AVT?

The VeriSafe® 2.0 Absence of Voltage Tester is designed to take the guesswork and risk out of voltage testing. With just the push of a button, you can quickly and safely confirm that a circuit is de-energized—without exposing yourself or your team to electrical hazards.

Key Features:

• Push-button testing: Initiate a test and get a clear, active indication when the absence of voltage is confirmed.
• Red and green LED indicators: Red means hazardous voltage is present; green means it’s safe to proceed.
• Fail-safe design: Built-in diagnostics and redundant safety channels ensure reliable results every time.
• Network connectivity: Optional modules allow for real-time diagnostics, remote monitoring, and easy integration with facility control systems.
•

Why It Matters for Electricians and Facility Managers

1. Improved Safety and Risk Reduction

• No need to open panels or expose yourself to live parts during testing.
• Reduces human error and meets stringent safety standards (NFPA 70E, CSA Z462, UL 1436, SIL

2. Faster, More Efficient Workflow

• Complete a full absence of voltage test in about 10 seconds—compared to 10–20 minutes with manual methods.
• Troubleshoot abnormal power conditions and document test results for compliance and audits.

3. Flexible Applications

• Suitable for 3-phase AC, single-phase AC, and DC systems up to 1000V.
• Works in power distribution, motor control, automation, data centers, and both industrial and commercial facilities.
• Designed for indoor and outdoor use, with robust environmental ratings (IP66, IP67, IP69).

How Does It Work?

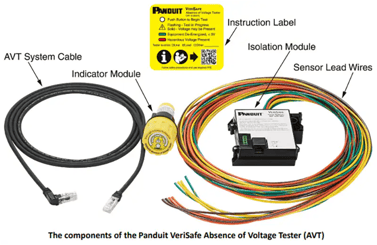

The VeriSafe® 2.0 AVT system includes:

• Indicator Module (battery-powered or battery-free)
• Isolation Module
• System Cable
• Instruction Label

Simply push the button to start the test.

The system checks for hazardous voltage, verifies connectivity, and confirms the absence of voltage—all without exposing workers to live conductors. Results are displayed instantly, and with the network module, you can even monitor and record diagnostics remotely.

Available at Electrozad

The Panduit VeriSafe® 2.0 Absence of Voltage Tester is available through Electrozad, your trusted partner for electrical safety solutions. For electricians, facility managers, and maintenance professionals, Electrozad provides the products and support you need to enhance safety, efficiency, and compliance in your operations.

Shop now to make absence of voltage testing safer, faster, and easier for your team.
